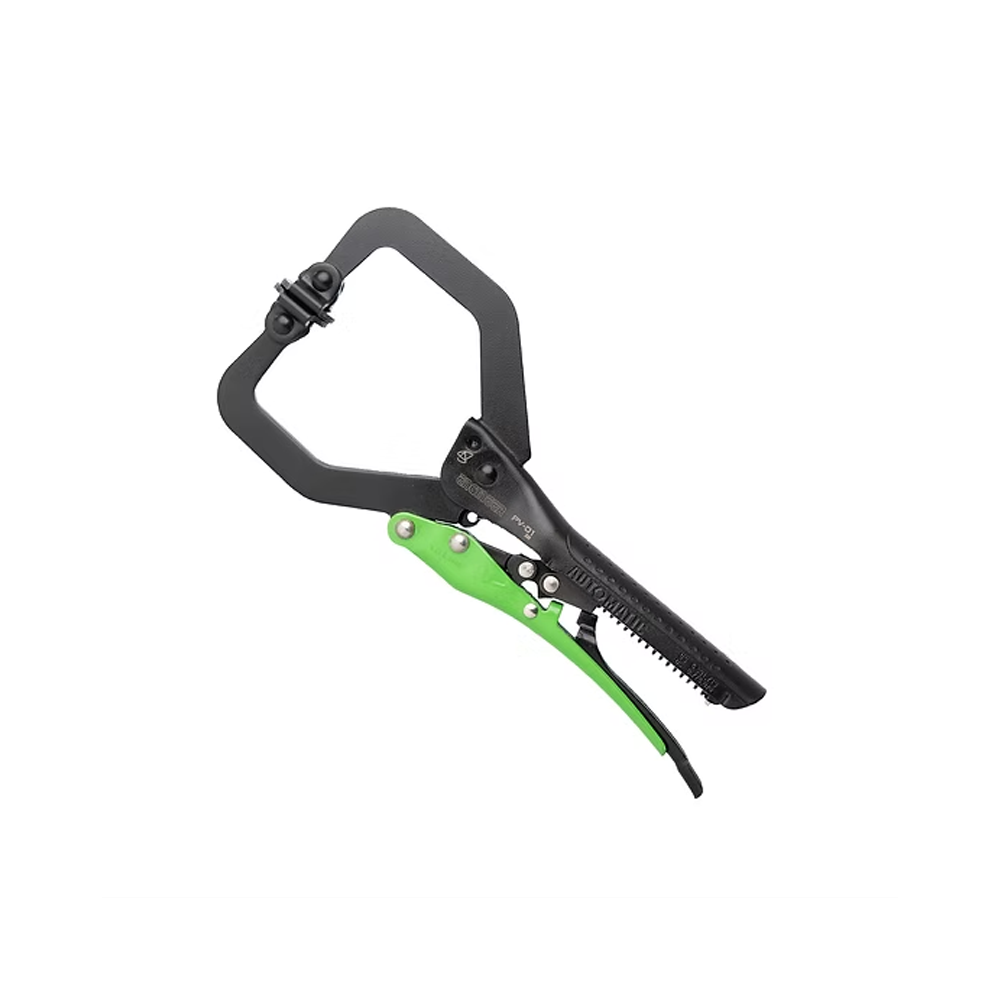

ENGINEER PV-01 C-type pliers automatic self-locking 230 mm opening 62 mm professional carbon steel

ENGINEER PV-01 is a professional C-clamp locking pliers with an automatic locking mechanism, designed for fast and secure gripping of parts of various sizes. Thanks to the automatic adjustment system, the pliers allow clamping of thin or thick materials in a single action, without manual adjustments, increasing efficiency in use.

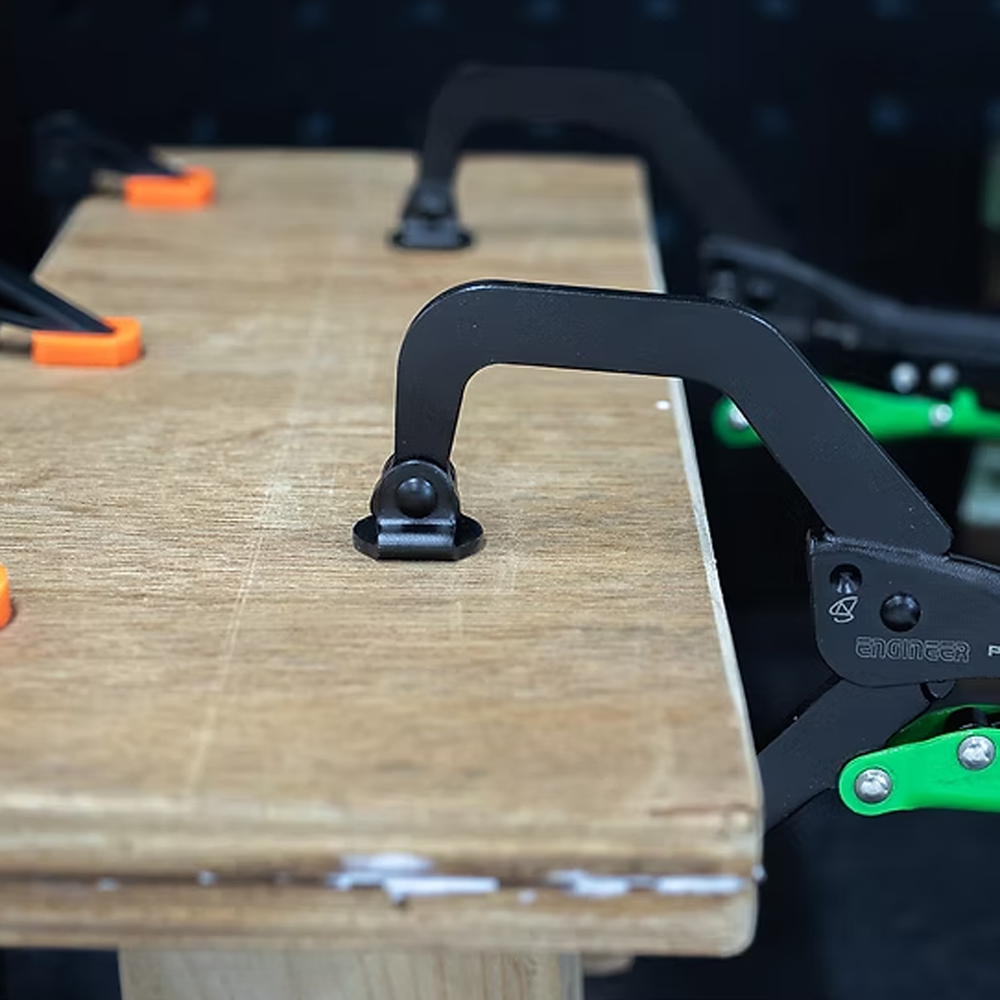

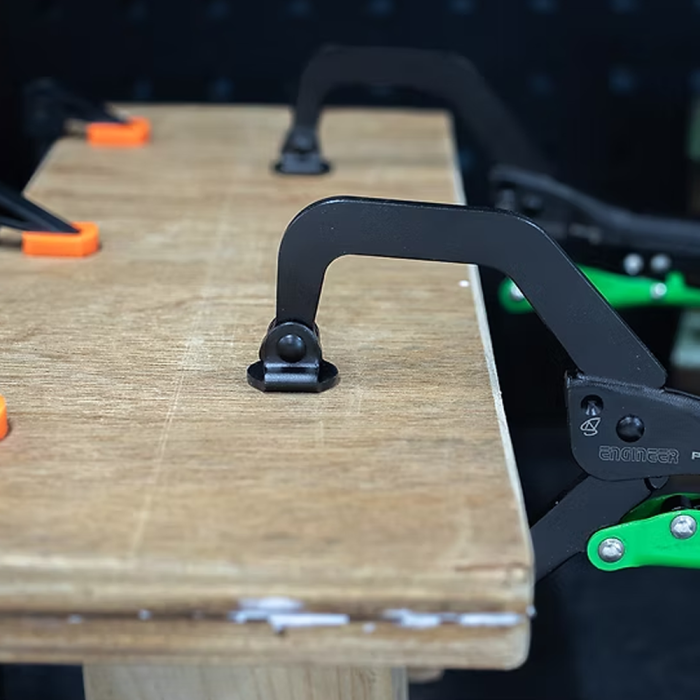

The deep jaw design allows gripping of parts even around obstacles, providing access and flexibility in complex applications. Additionally, the articulated mechanism enables angled gripping, making it ideal for work in difficult spaces or awkward positions.

The pliers are equipped with an adjustment screw for setting the clamping force, providing optimal control depending on the application. The quick-release system allows easy unlocking after use, contributing to an efficient and safe workflow.

The robust construction, made from carbon steel and chrome vanadium steel for the contact areas, ensures high resistance to wear and mechanical stress. The total length of approximately 230 mm and a maximum opening of 62 mm make it suitable for a wide range of professional applications.

Key Features:

• The pliers feature an automatic locking system that allows fast gripping of parts without additional adjustments. The deep jaws facilitate clamping around obstacles, while the articulated mechanism enables angled work. The adjustment screw provides control over the clamping force, and the release lever ensures quick unlocking. The solid construction and high-quality materials guarantee durability in intensive use.

Main Applications:

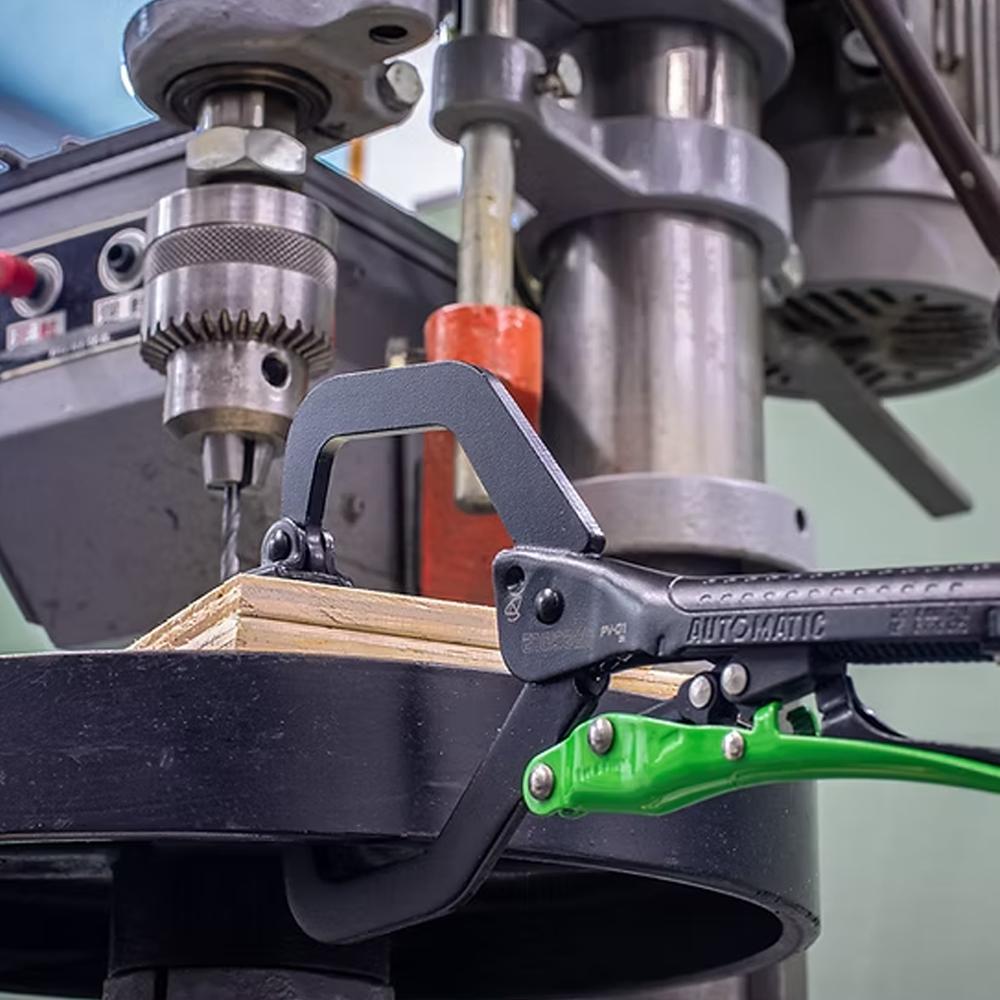

• Ideal for holding parts in maintenance work, welding, construction, technical repairs, mechanical installations, or industrial applications. It is useful for firmly gripping materials during work or positioning them in various operations.

Advantages:


The main advantage of the PV-01 model is the automatic locking system, which reduces working time and eliminates the need for manual adjustments. The versatility provided by the large opening and deep jaw makes it suitable for a wide range of applications. The robust construction and reliable mechanism ensure consistent performance and long-term durability.

Technical Specifications:


• Model: PV-01
• Product type: C-clamp locking pliers
• Total length: approx. 230 mm
• Maximum opening: approx. 62 mm
• Jaw depth: approx. 60–70 mm
• Jaw size: approx. 23 x 23 mm
• Weight: approx. 365 g
• Material: carbon steel + CR-V
• Functions: auto-locking, force adjustment, quick release
• Origin: Japan
