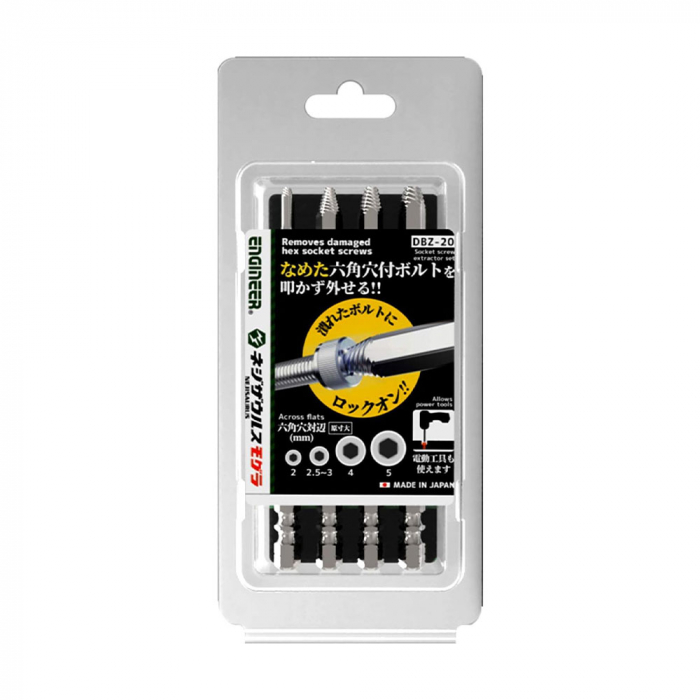

4 in 1 Screw Extractor Set 4 in 1 Used Head Screws ENGINEER DBZ-20, Made in Japan

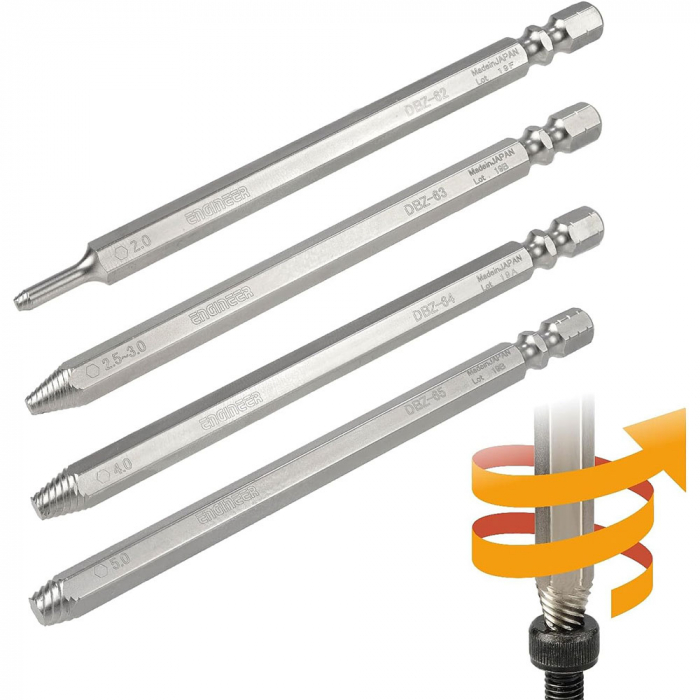

4 in 1 Screw Extractor Set 4 in 1 Used Head Screws ENGINEER DBZ-20 includes: DBZ-62, DBZ-63, DBZ-64, DBZ-65

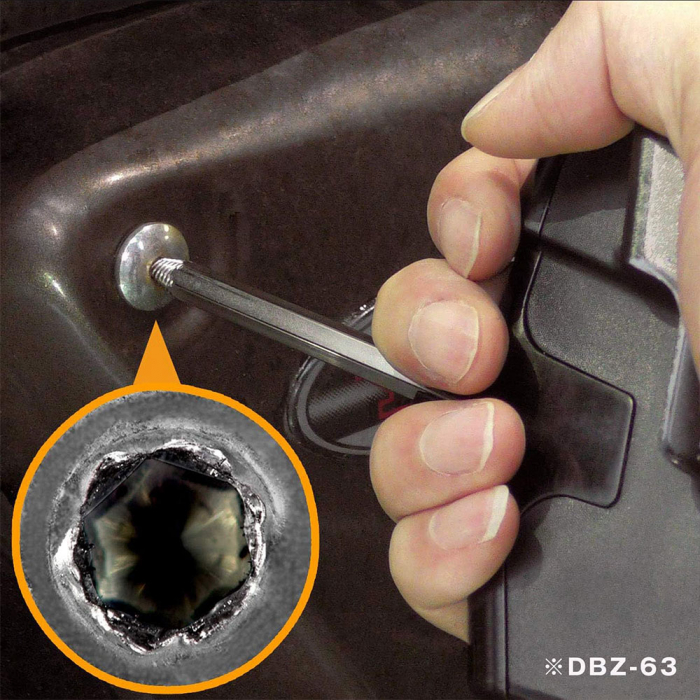

The unique shape of the tip allows you to remove broken head screws without hitting them
Compatible with non-heat treated screws

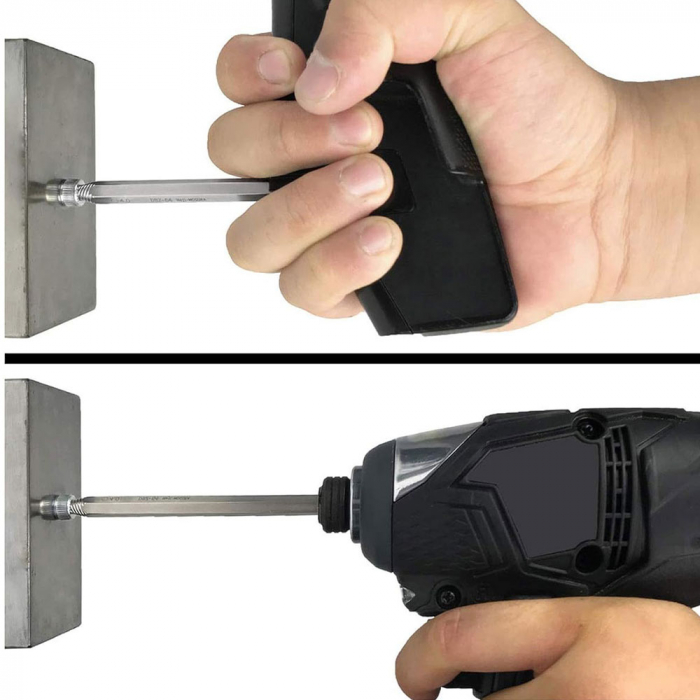

It can also be used with electric screwdrivers

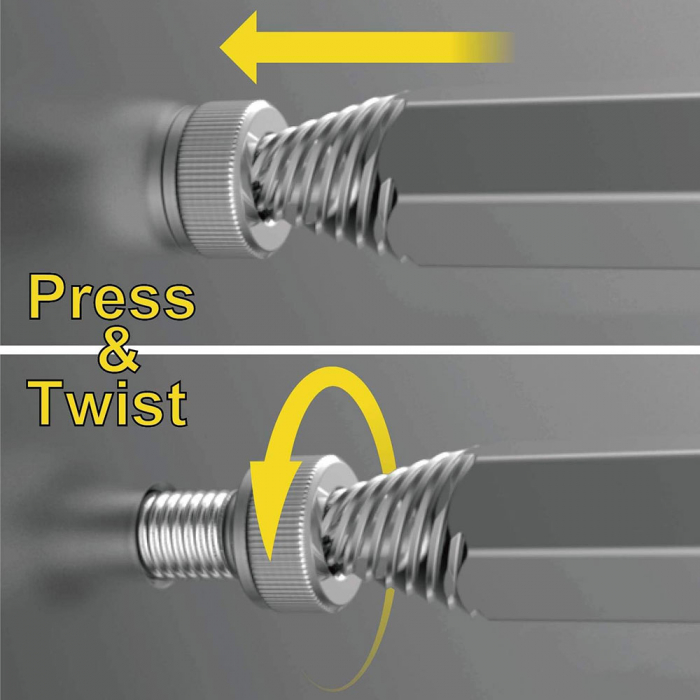

1. Press the extractor bit into the socket of the extractor screw.

2. Twist it while holding the bit firmly. When using an electric screwdriver, select a lower speed in reverse mode and turn it counter-clockwise.

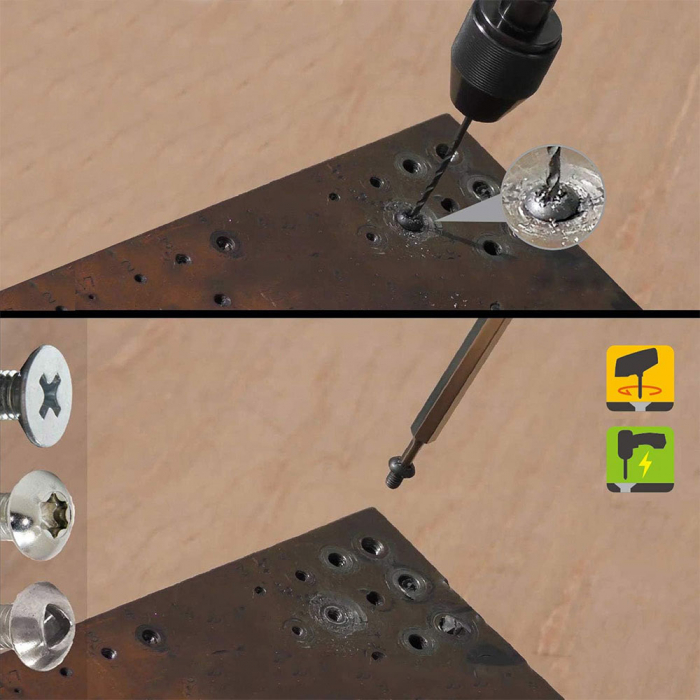

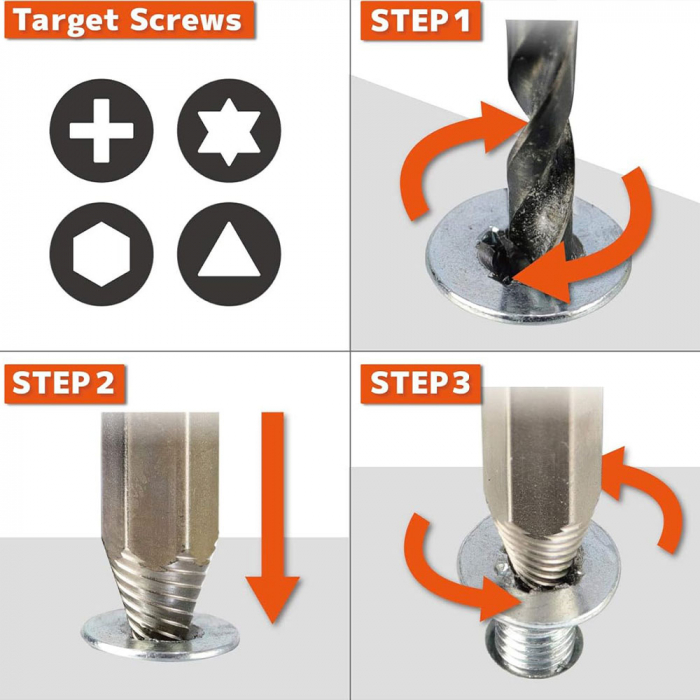

1. Drill a pilot hole in the center of the screw head.

2. Use the corresponding bit from the DBZ-20 set), which corresponds to the pilot hole (the diameter of the drill used).

3. Apply a tip of the puller and rotate it counterclockwise while pressing down. An electric screwdriver can also be used. (lower speed is recommended)
Caracteristics:


• Product type: Bit Screwdriver
• Use: General use
• Material: Carbon steel
• Bit length: 105 mm
• Color: Silver
• Dimensions: 150 x 100 x 20 mm
• Weight: 135 g
