ENGINEER ENGINEER PA-24 Pliers for crimping micro connectors and cutting screws, 160 mm, Made in Japan

1 Review
291,16 Lei 253,30 Lei

ENGINEER

PA-24

Pliers for crimping

micro connectors and

cutting screws

, 160 mm, Made in Japan


  • High precision crimping pliers - with this tool everyone can become a crimping expert!
  • The reduced size and weight prevent rapid hand fatigue during work

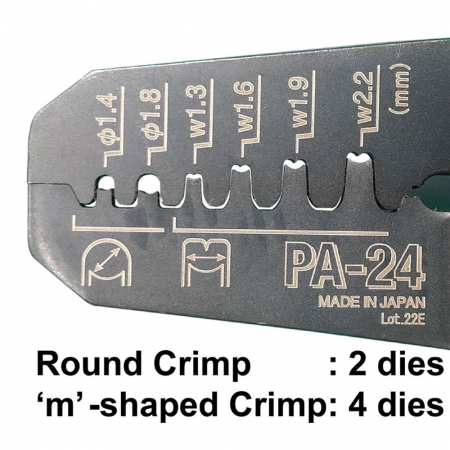

  • 6 crimp dies
  • Crimping dies in the shape of the letter "m" with heights of 1.3, 1.6, 1.9 and 2.2 mm
  • Round crimp dies for open cylinder contacts: φ1.4 and φ1.8 mm
  • It can crimp over 170 different applicable terminals
  • Specialized for crimping 2.5mm pitch connectors of various connector manufacturers Works with JST XH, PH, EH and NH series, Molex Micro-Fit, KK series, etc. AWG #32-#18
  • Perfectly cylindrically crimps the triangular wings (grooves) of the DuPont connector (Servo), Molex C-Grid III, etc. without damaging the insulation.
  • Built-in screw cutter – can cut small M2, M2.6 and M3 screws to the desired length
  • Tapered and slim jaws, low weight of only 115g
  • Spring-loaded handles (on the back) with a locking mechanism for easy handling
  • Soft and pleasant-to-the-touch handles, provided with an eyelet for the cord
  • Recommended for work in electronics, electricity, radio control, assemblies or PC repairs
  • Made in Japan.



PN: PA-24

In stock

Delivery date: 24 h - 48 h from order confirmation

Stock limit
Add to cart
Product Code: JPEPA24 Do you need help? 0752.645.003 / 0752.645.008
Add to wishlist Request information
  • Description
  • Characteristics
  • SICAP (SEAP) Puchaising
  • Reviews (1)
ENGINEER PA-24 Pliers for crimping micro connectors and cutting screws high precision!
Specialized for crimping 2.5mm pitch connectors of various connector manufacturers Works with JST XH, PH, EH and NH series, Molex Micro-Fit, KK series, etc. AWG #32-#18

Recommended for work in electronics, electricity, radio control, assemblies or PC repairs

Specifications

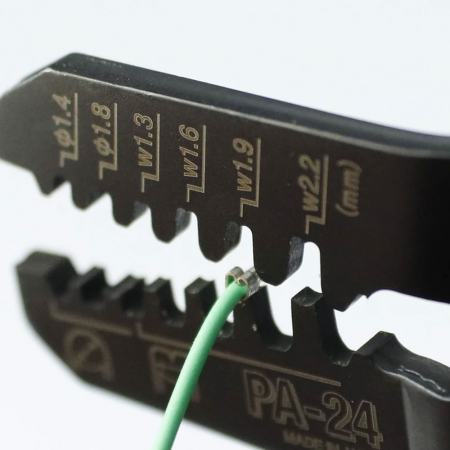

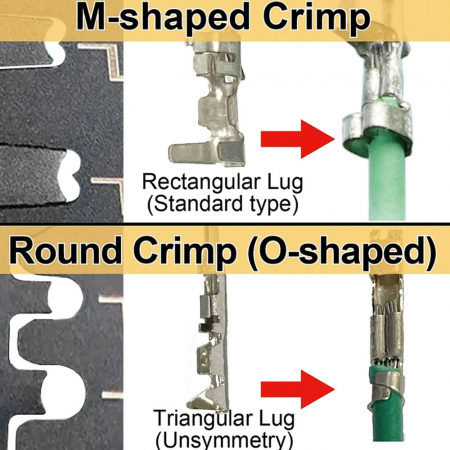

  • Molds in the shape of the letter M – connector section perfectly crimped on the conductor. The section in the connector for insulation can be bent very neatly without destroying the insulation.

sancogrup.ro

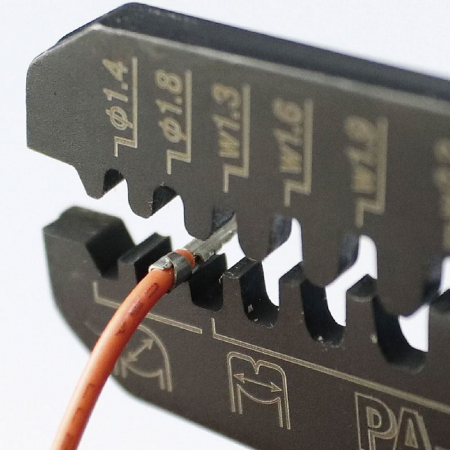

  • Round Dies (For DuPont contact etc.)  [φ1.4 & φ1.8mm]. Wrap triangular lugs of the barrel around the insulation without damage.

sancogrup.ro

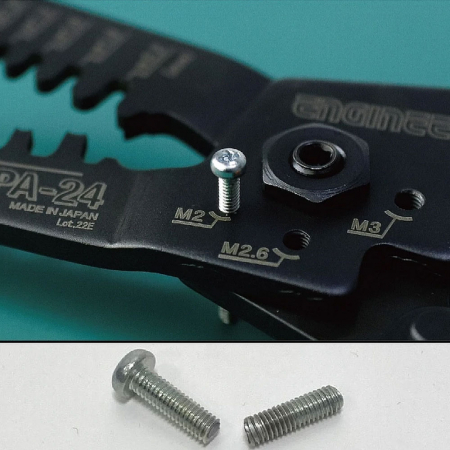

  • Cutting area for M2, M2.6 and M3 screws

sancogrup.ro

How to select the right crimping molds


sancogrup.ro


1.    Measure the diameter of the conductor or the diameter of the cable with insulation with a subler, making sure that the connectors of the connector are parallel.
2.    Select the die width that is close to the measured connector lug width. Example: 1.5 mm measured - >> Select 1.6 mm molds
3.    Conductor crimping First crimp the conductor. It is recommended to offset the front of the conductor connector by 0.1 - 0.2 mm. Then crimp the cable with insulation.


sancogrup.ro


sancogrup.ro

Similar products
sancogrup.ro

  Caracteristics:


  • Product type: Crimped pliers
  • Pliers type: Crimping micro connectors
  • Brand: Engineer
  • Model: PA-21
  • Material: carbon steel
  • Steel type: S55C
  • Length: 160 mm
  • Max handle width: 57 mm
  • Number of molds: 6
  • Handles: Elastomer (TPR)
  • Color: Yellow
  • Dimensions: 160 x 48 x 12 mm
  • Weight: 135 g

Package Contents: 1 x ENGINEER PA-24 Cleste sertizare micro conectori si taiere suruburi, 160 mm, Fabricat in Japonia

Material: Elastomer, Otel special aliaj

Protection working under voltage: Nu

Color: Black, Orange

Produced: Made in Japan

Overall length: 160 mm

  • The products found on the site www.sancogrup.ro are present and on public procurement SICAP platform, under the registration of the CPV concerned;
  • You have chosen a product or service from nooastra offer, you want to purchase and is not available in the SICAP? Contact us to publish;
  • Payment can be made by OP, before delivery at our treasury accounts in the 24-30 days of the month.

If you want to express your opinion about this product you can add a review.

The review was sent successfully.
Verified purchase

Tudor Sandu,

Excelent! Se simte foarte bine in mana, terminalele sunt destul de usor de inserat in matrite. Am incercat cu niste conectori Dupont si niste JST-XH2.54 si este incomparabil cu porcaria mea chinezeasca cumparata cu aproximativ jumatate din pretul acestui cleste.
