Handy Crimp Ultra-precise Pliers ENGINEER PAD-02 kit, made in Japan

Name: Handy Crimp Ultra-precise Pliers ENGINEER PAD-02 kit, made in Japan
Brand: ENGINEER
SKU: JPEPAD02
Price: 723.57 RON
Availability: InStock
Rating: 5 (1 reviews)

1 review

Product Code: JPEPAD02

In stock

Delivery date: 24 h - 48 h from order confirmation

Handy Crimp Ultra-precise Pliers ENGINEER PAD

-02 kit, ultra-precise crimper forming excellent crimping finish! The kit contains ENGINEER PAD-11

multifunctional crimping pliers

, 2 sets of interchangeable die set, hexagon wrench 2.5 mm, 6 transparent plastic boxes for storage connectors or slippers for

cables and wires

, elegant and durable briefcase with metal locks. Interchangeable die set for open-barrel contacts. Easy replacement and perfect fitting to frame. Made in Japan!
Recommended by the Romanian Association of Electricians!

PN: PAD-02

~~1.113,19 Lei~~ 723,57 Lei

Stock limit

- +

Add to cart

Comandati si la: 0752.645.008

Handy Crimp Ultra-precise Pliers ENGINEER PAD-02 kit, made in Japan

Was added to wishlist!

Wishlist Request information

Quick confirm We will contact you as soon as possible to confirm the order launched on the website.

You will be contacted as soon as possible by a sales consultant to receive the best recommendations for your needs!

Money back You are not satisfied with the ordered products, you get your money back! GUARANTEED!

Money back guarantee! - you are not satisfied with the products purchased - you get your money back - GUARANTEED!

Free delivery For orders greater
than 300 lei

Order at least 300 lei and you have free transport by Fan Curier

Delivery from stock Delivery time
24 hours (in Bucharest)
and maximum
48 hours for other romanian provinces

For orders placed until 15:30, they will be delivered in a maximum of 24 hours in Bucharest and a maximum of 48 hours in the province. Exception: orders placed on weekends (will be delivered starting Monday)

Description
Characteristics
Reviews (1)
Consumables and accessories
SICAP (SEAP) Puchaising

Handy Crimp Ultra-precise Pliers ENGINEER PAD-02, ultra-precise crimper forming excellent crimping finish!

Interchangeable die set for open-barrel contacts.
Easy replacement and perfect fitting to frame
Ergonomically-designed handles with strap hole
Equipped with wire stripper and cutter
2.5mm (Across flats) Hex key wrench included as standard accessory

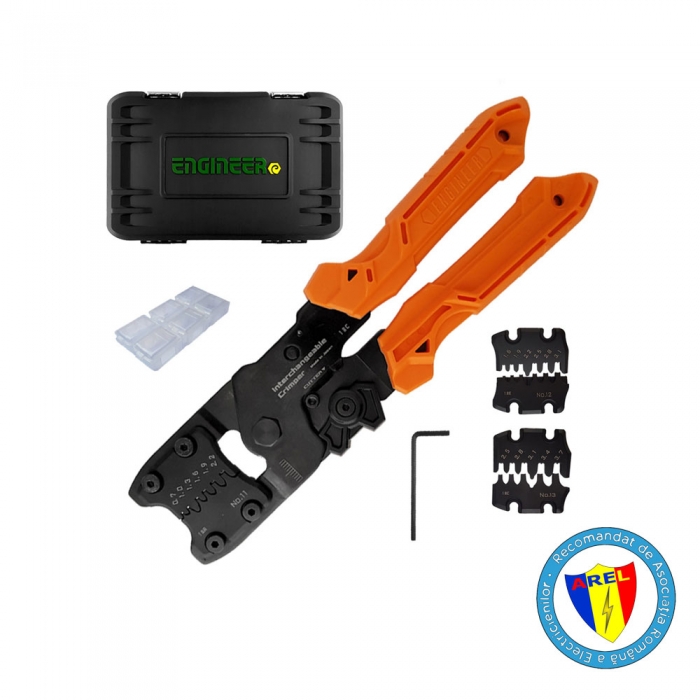

The kit includes:

1. Ultra-precise ENGINEER PAD-11 multifunctional crimping pliers (includes PAD-11S)
2. PAD-12S Die Set
3. PAD-13S Die Set
4. 2.5 mm hex key wrench

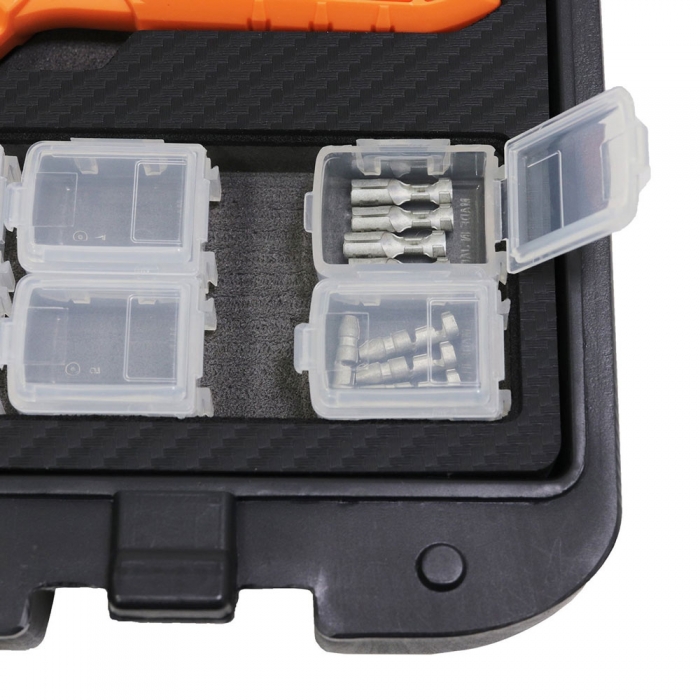

5. 6 transparent plastic boxes for storing different types of connectors (20 x 29 x 16 mm). Note: Terminals are not included in this set

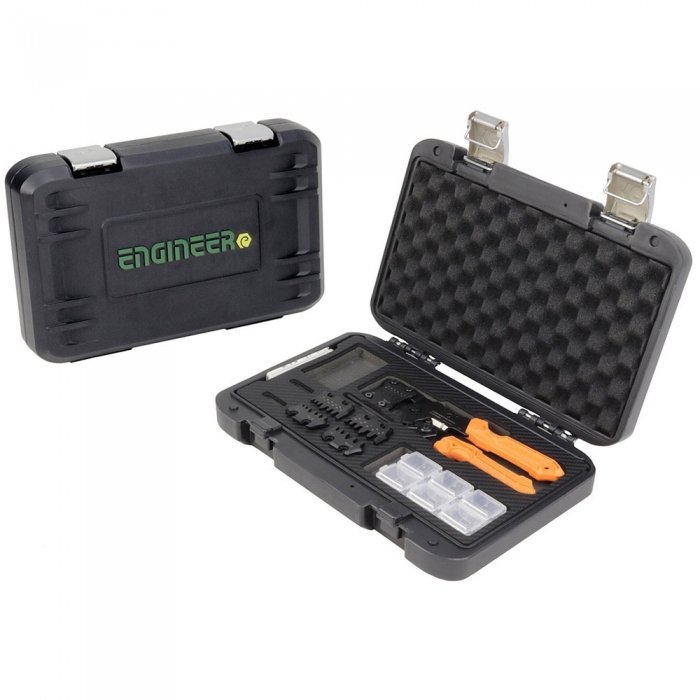

6. Durable and elegant hard plastic briefcase (HDPE) with metal locks, external dimensions 300 x 200 x 63 mm, inside sponge

Features:

Precise crimping and excellent curling of wire and insulation barrels individually
Wire cutter with stripping hole
With strap hole
Clamp lock button

Specifications:

Length: 205 mm
Width head: 47 mm
Maximum diameter: 3.7 mm
Material: Special alloy steel
Hardness: HRC 58±4
Kit weight: approx. 910 g
Briefcase dimensions: 300 x 200 x 63 mm

How to adjust the Joint-Screw
Crimp plier

Caution!

Do not attempt to adjust the bolt with nut from both sides with 2 pcs. of wrenches, which causes the screw joint broken. Use a hex key wrench for fastening with torque of less than 2 N/m.

Note!

Before use, please make sure that wire size meets the standard provided by each connector maker and that the configuration and size of terminal is adaptable to the crimping dies
Adjust both wings of open-barrel to be in parallel before crimping.
Make sure that connector pin retains straight before insertion into a die cavity.
Do not lay the contact pin inclined in a die cavity to avoid deforming in crimping work.
Do not squeeze handles so hard while crimping insulation portion, which may cause disconnection of wires.

Specifications:

Item no.	PAD-11
				PAD-12
							PAD-02
Die W (mm)	0.7	1	1.3	1.6	1.9	2.2	2.5	2.8	3.1	3.4	3.7
Die H (mm)	0.23	0.33	0.44	0.54	0.64	0.76	0.84	0.95	1	1.15	1.26
Die T (mm)	1		1.5		2		2.5		3		3.5

Item no.	Tool Frame	Die Set	Material
PAD-11	PAD-10 + PAD-11S		Frame and Die Set: Special alloy steel Handles: TPR
PAD-12	PAD-10 + PAD-12S
PAD-02	PAD-10 + PAD-02S

Interchangeable die set

Over 300 crimping of various open-barrel contacts applicable by assortment of 3 different die sets
Crimp plier

Other video presentation, Source Engineer Japan:

Material: Elastomer,Otel special aliaj

Overall length: 205mm

Cutting head width: 47mm

Maximum diameter: 2.2mm

Protection working under voltage: Nu

Package Contents: Cleste sertizare papuci, multifunctional ultra-precis, ENGINEER PAD-02, bacuri interschimbabile,3 seturi,incluse de la 0.7 la 3.7 orange, fabricat in Japonia,Bacurile PAD-12S care acopera de la 1.6 la 3.1,Bacurile PAD-13S care acopera de la 2.5 la 3.7,Cheie imbus cu amprenta hexagonala de 2.5mm,6 cutiute cu locas special pentru papuci,Servieta PVC rigida pentru transport

Produced: Made in Japan

Color: Black,Orange
